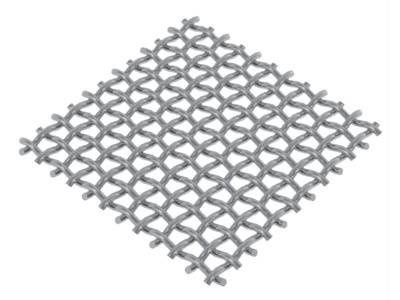

plain weave
Plain weave is the simplest and most common weaving method for square hole weaving, where each warp is alternately woven through each weft, allowing for complete control over the size of the material that needs to be screened or filtered.
CONTACT
Tel/Fax: +86-18737377191
Phone: +86-373-3765418
E-mail: service@gfscreening.com
Address: No.1, Jingyi Road, Youfang Dixiang, Guandi Township, High-tech Zone, Xinxiang City, Henan Province

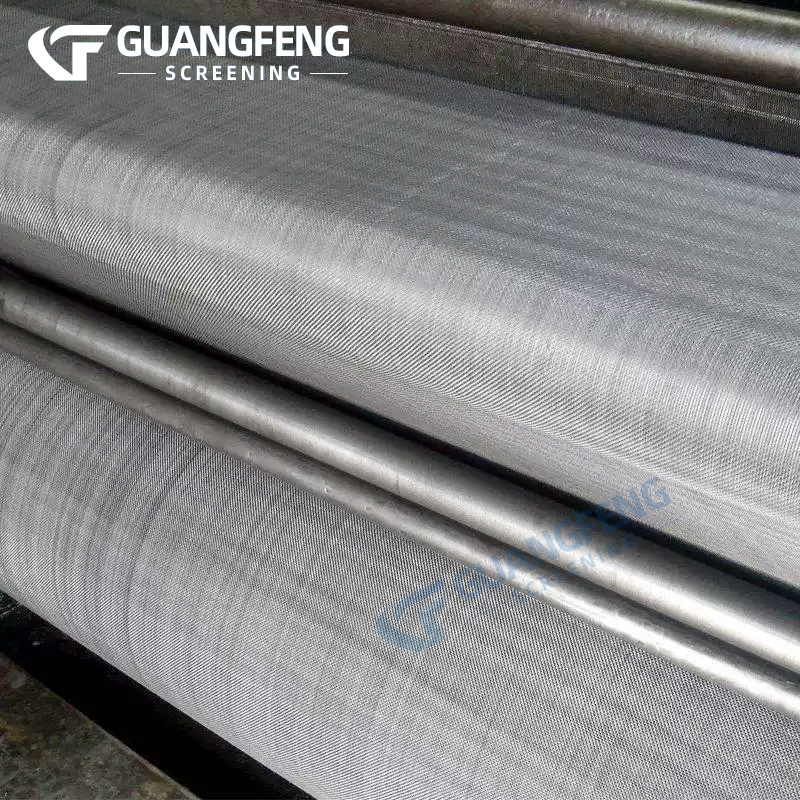

Stainless steel diagonal mesh
- Commodity name： Stainless steel diagonal mesh
Product characteristics
Corrosion resistance
Due to the use of stainless steel material, it has good corrosion resistance such as acid, alkali, and salt resistance, and can be used in various harsh chemical environments.
- High strength
Stainless steel wire has high strength and toughness, which enables stainless steel wire mesh to withstand large tensile and compressive forces, and is not easily deformed or broken.
- High filtering accuracy
Different precision filtration can be achieved according to different mesh sizes and weaving methods, effectively filtering out various impurities and particles.
- High temperature resistance
Some stainless steel materials, such as 316 stainless steel, can withstand high temperatures and maintain stable performance in high-temperature environments.
- Easy to clean
Smooth surface, less prone to impurities and dirt, easy to clean, and reusable.
Product characteristics
Physical aperture shooting is for reference only

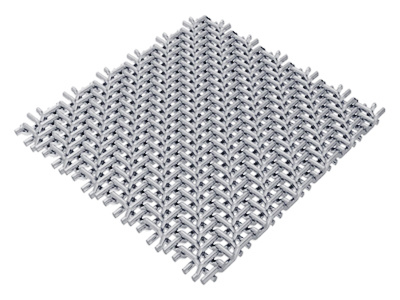

Twill weave
Twill weaving is the process of alternating between two warp threads with each weft thread, and weaving them in a staggered arrangement on a continuous warp thread. Usually used for weaving fine mesh with heavy loads.
Calculator

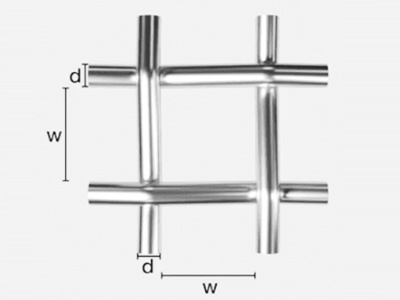

Here, we prepare an open area computational formula of square weave wire cloth.
d - wire diameter
w - mesh opening
A0 - open screen area
A0 = w² ÷ (w+d)² × 100%

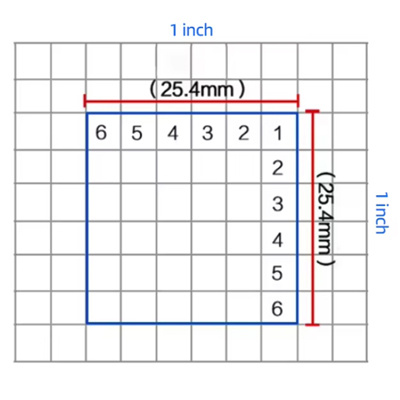

What is mesh count?
The number of mesh holes (not square) within a length of one foot (25.4 millimeters)has an error
A more intuitive way of expression:
Number of mesh holes=Number of mesh holes
The larger the number of mesh holes, the smaller the mesh aperture
Micron size=mesh size
The larger the micrometer size, the larger the mesh size

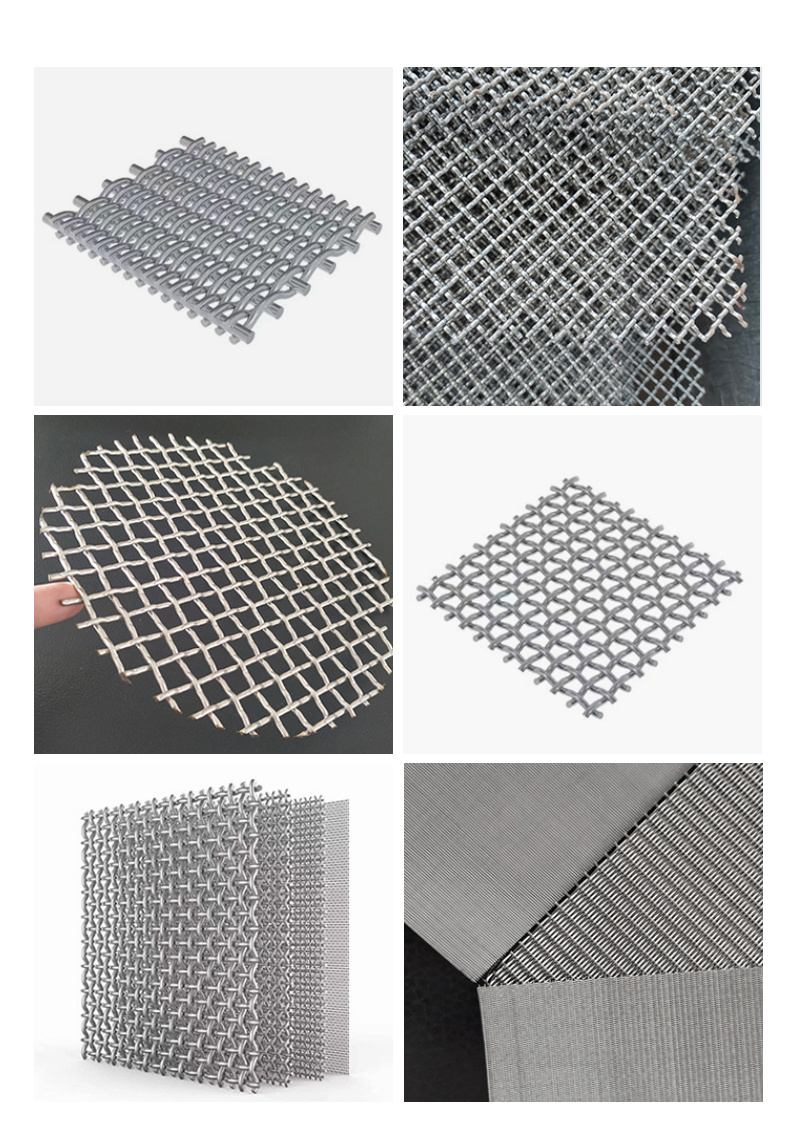

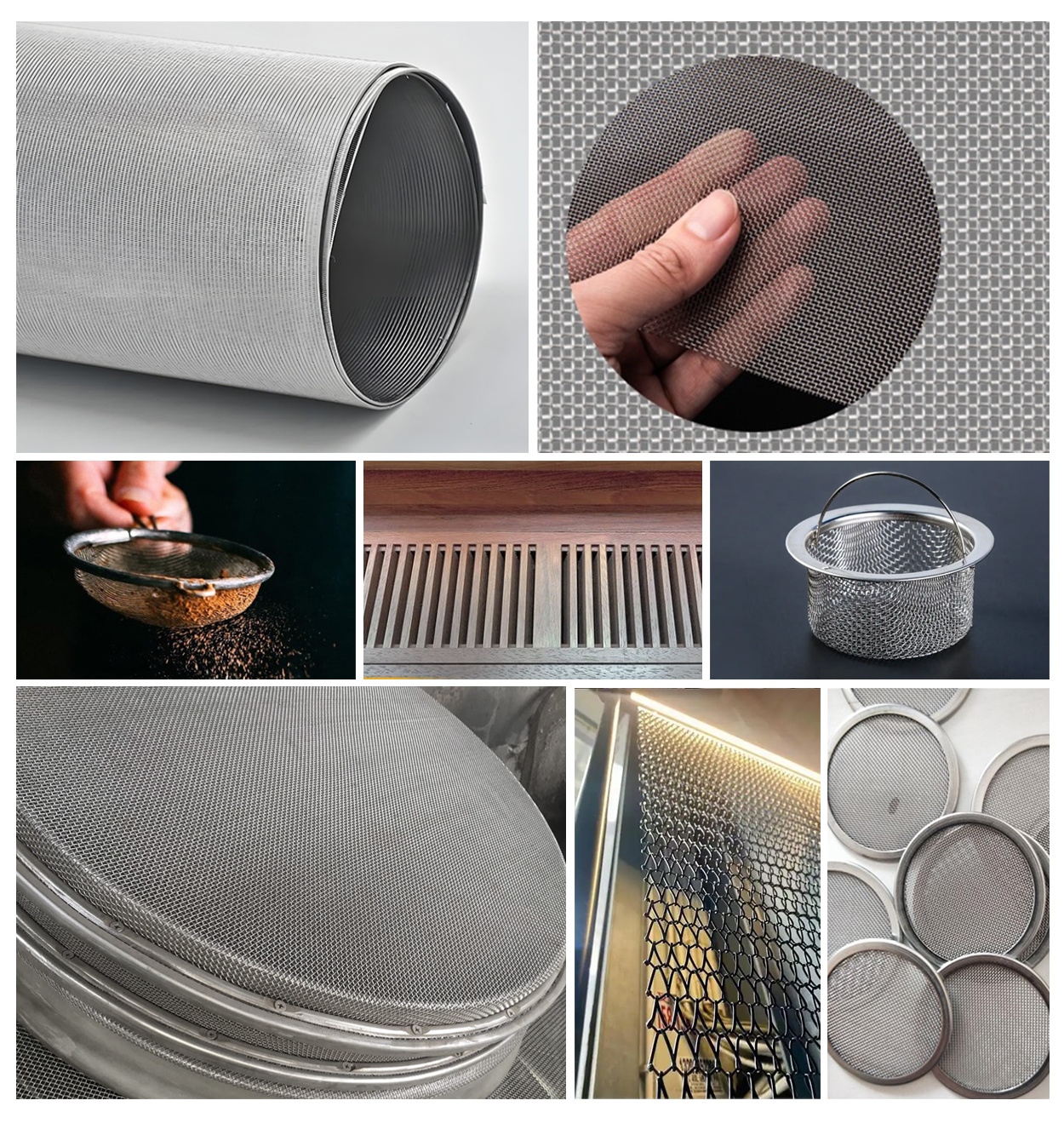

Product Display
Application scope
Used in various industries. The petroleum, chemical, environmental protection, mining, aerospacepapermaking, electronics, metallurgy, food, and pharmaceutical industries all use woven wire mesh.
Cooperative Partner

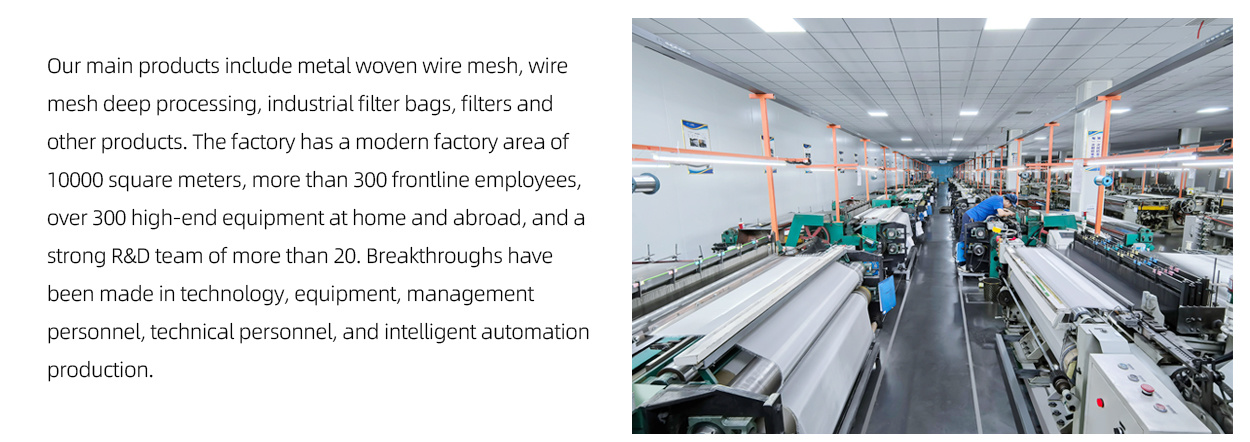

Multi layer inspection
Cooperative Partner
Keywords:
Get A Quote
We will contact you within one working day. Please pay attention to your email.
Related Products
FAQ
Product related questions
- Material:
Q “What kind of material is used in your stainless steel screen mesh?”
A “Our screen mesh is mainly made of high quality stainless steel, such as 304, 316L, which is rust-proof, corrosion-resistant, and can be adapted to different working environments.”
- Size:
Q “What are the specifications of screen mesh? Can it be customized?”
A “We have a variety of standard specifications, such as mesh size from 10 mesh to 500 mesh, width 0.5 meters to 2 meters, etc. We can also customize special specifications according to your needs. We can also customize special specifications according to your needs.”
- Product performance:
Q “What is the filtration precision of stainless steel screen mesh?”
A “The filtration precision depends on the mesh number, the higher the mesh number, the higher the precision. For example, 100 mesh screen can filter out particles larger than about 0.15mm.”
Production and processing issues
- Production cycle:
Q “How long will it take to ship after ordering?”
A “Conventional products will be shipped within 15-20 working days after receiving the payment, and customized products will take 20-30 working days, depending on the order quantity.”
- Processing technology:
Q “How are the screens produced?”
A “We adopt advanced weaving or welding technology, through drawing, weaving, cutting, welding, surface treatment and other processes to ensure product quality.”
Application and installation issues
- Application:
Q “What industries are stainless steel screen mesh applicable to?”
A “Widely used in mining, chemical, food, pharmaceutical, construction and other industries, such as mining ore screening, chemical liquid filtration.”
- Installation method:
Q “How to install the screen?”
A “Installation needs to be based on the use of the scene and equipment to choose the appropriate method. For example, if used in vibrating screen, the screen frame should be fixed first, and then the screen mesh should be tautly fixed with special fixture.”
After-sales and service issues
- After-sales service:
Q “How can I get help if I have problems in using it?”
A “You can contact our customer service team at any time, provide product information and problem description, we will provide timely solutions.”
