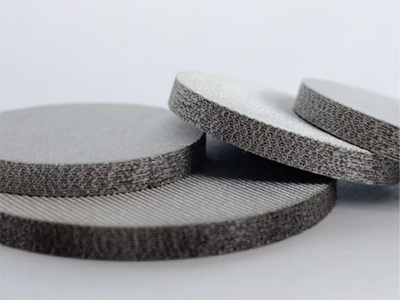

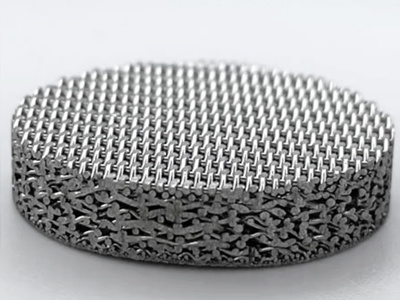

Stainless steel multi-layer metal sintered mesh is a new type of filtering material with high strength and overall rigidity, which is made by special stacking and pressing of multi-layer stainless steel wire mesh and vacuum sintering. The mesh holes of each layer of wire mesh are interlaced with each other, forming a uniform and ideal filtering structure. It has excellent filtering accuracy, filtering impedance, mechanical strength, wear resistance, and processability, and uniform requirements for compressive strength and filtering accuracy are particularly ideal. It is widely used in industries such as petrochemicals, nuclear power, synthetic fibers, film, video, pharmaceuticals, aerospace, and environmental protection
Product Parameters

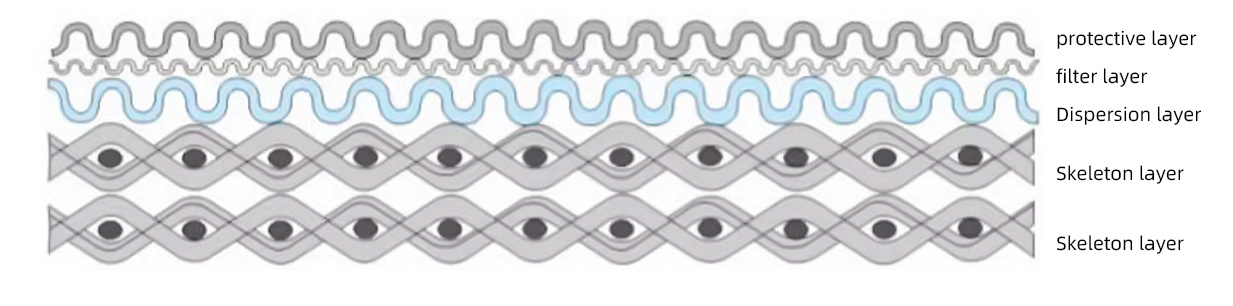

Standard five layer mesh structure diagram: generally divided into five layers, including protective layer, filter layer, separation layer, and support layer. This type of filter material has both uniform and stable filtration accuracy, as well as high strength and stiffness. It is an ideal filter material for situations where high compressive strength and uniform filtration particle size are required. Due to its surface filtration mechanism and smooth mesh pores, it has excellent backwashing and regeneration performance, which can be repeatedly used for a long time. It is particularly suitable for continuous and automated operation processes and cannot be compared to any other filtering material. The sintered mesh material is easy to form, process, and weld, and can be easily processed into various forms of filter elements such as circular, cylindrical, conical, corrugated, etc,
Nominal filtration degree(μm)
Initial Bubble Pressure (Pa)
porosity
Thickness (mm)
1
4100-6800
28
1.7
2
3850-6150
28
1.7
5
3150-4600
29
1.7
10
2650-4300
29
1.7
20
2100-3500
29
1.7
30
1750-3250
30
1.7
50
1580-2800
30
1.7
80
1250-2150
31
1.7
100
950-1580
32
1.7
150
730-1350
35
1.7
200
380-680
39
1.7
Filtration accuracy(μm)
Initial layer mesh thickness (Pa)
Filter layer
1
0.068
400x2800/0.028x0.02
2
0. 09
325x2400/0.036x0.025
5
0.151
200x1400/0.071x0.04
10
0. 151
165x1400/0.071x0.04
15
0. 135
160x1500/0.063x0.036
20
0.135
165x800/0.071x0.045
25
0.171
165x600/0.071x0.05
30
0.245
78x760/0.112x0.071
40
0.320
60x300/0.14x0.09
50
0. 305
50x600/0.125x0.09
50
0.092
0.05/0.04
60
0. 115
0.063/0.05
70
0.129
0.0711/0.056
75
0. 115
0.075/0.05
80
0. 145
0.08/0.063
90
0.163
0.09/0.071
100
0.163
0.1/0.071
150
0.23
0.15/0.1
200
0.258
0.2/0.125
Product details
High-intensity
Has good mechanical strength and compressive strength, good processing, assembly, and welding performance, and is easy to use
Heat resistance
Can be used for continuous filtration from -200 ° C to 650 ° C, while also being resistant to acid and alkali corrosion
Cleanliness
The reverse flow cleaning effect is excellent Reusable and long-lasting
High precision
Uniform surface filtration performance can be achieved for filtration accuracies ranging from 1 to 300 microns The use of mesh holes remains unchanged

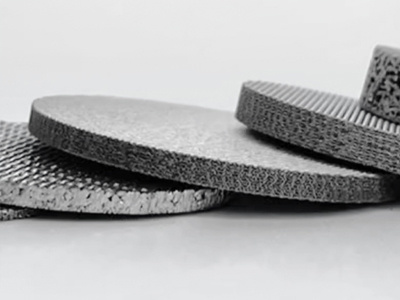

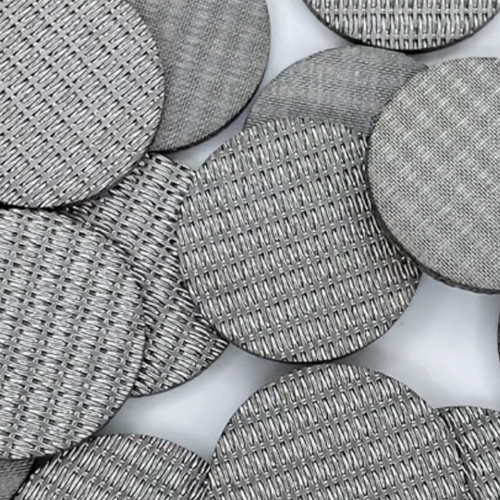

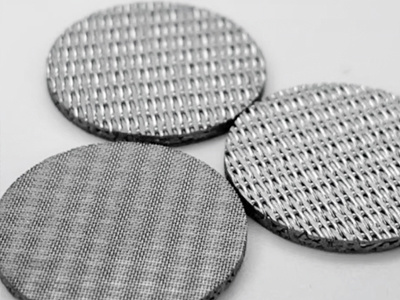

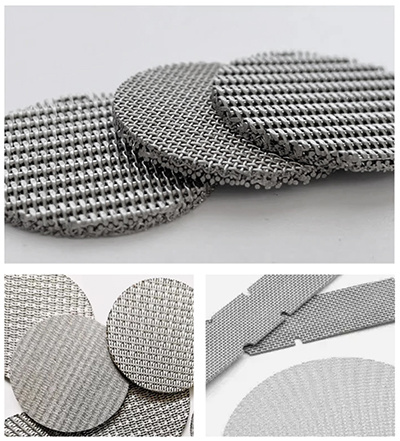

Product actual photos
Application field
Used in various industries. Petroleum, chemical industry, ecological environment protection, mining, aerospace, papermaking, electronics, metallurgy, food The pharmaceutical and other industries use woven nets.

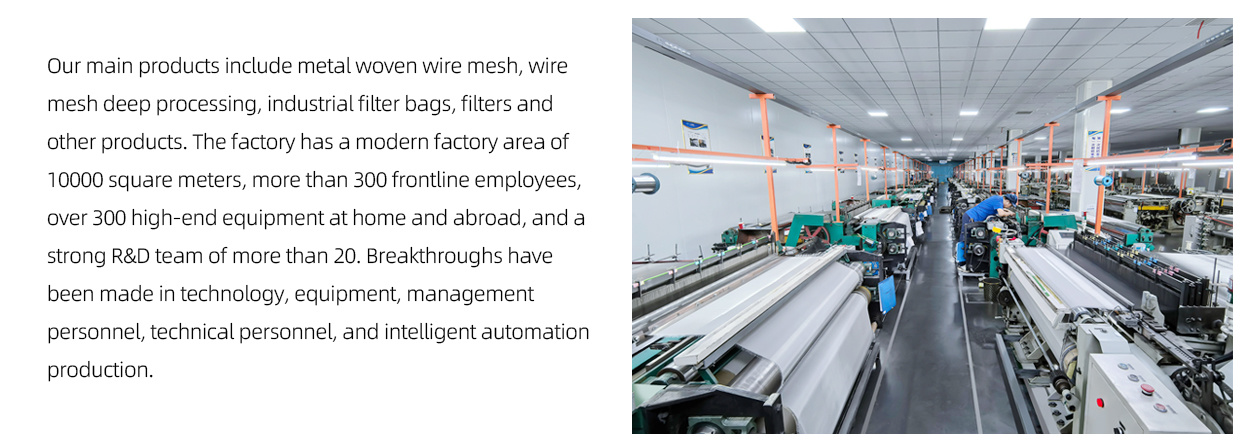

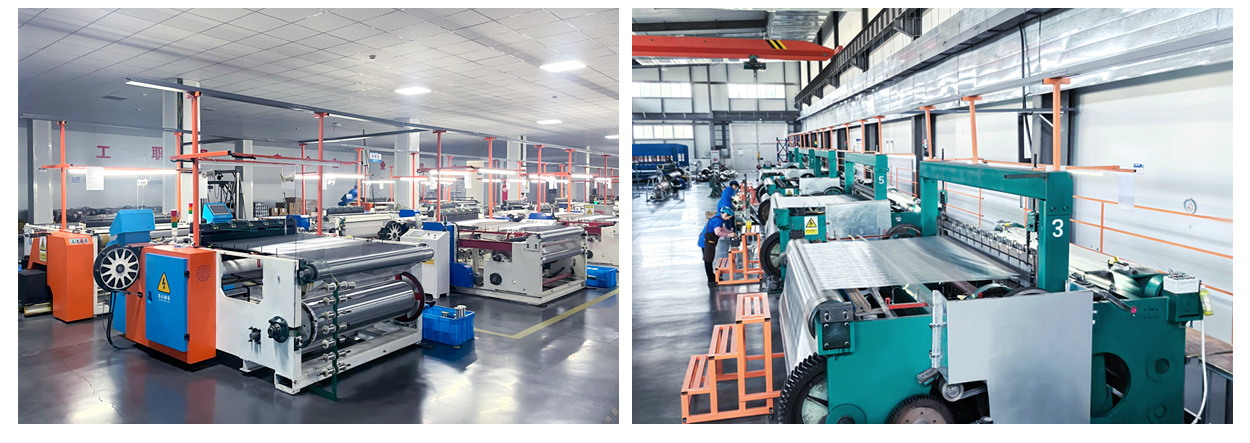

Manufacturer's strength
Multi layer inspection
Cooperative Partner
Keywords:
Get A Quote
We will contact you within one working day. Please pay attention to your email.
Q “What kind of material is used in your stainless steel screen mesh?”
A “Our screen mesh is mainly made of high quality stainless steel, such as 304, 316L, which is rust-proof, corrosion-resistant, and can be adapted to different working environments.”
- Size:
Q “What are the specifications of screen mesh? Can it be customized?”
A “We have a variety of standard specifications, such as mesh size from 10 mesh to 500 mesh, width 0.5 meters to 2 meters, etc. We can also customize special specifications according to your needs. We can also customize special specifications according to your needs.”
- Product performance:
Q “What is the filtration precision of stainless steel screen mesh?”
A “The filtration precision depends on the mesh number, the higher the mesh number, the higher the precision. For example, 100 mesh screen can filter out particles larger than about 0.15mm.”
Production and processing issues
- Production cycle:
Q “How long will it take to ship after ordering?”
A “Conventional products will be shipped within 15-20 working days after receiving the payment, and customized products will take 20-30 working days, depending on the order quantity.”
- Processing technology:
Q “How are the screens produced?”
A “We adopt advanced weaving or welding technology, through drawing, weaving, cutting, welding, surface treatment and other processes to ensure product quality.”
Application and installation issues
- Application:
Q “What industries are stainless steel screen mesh applicable to?”
A “Widely used in mining, chemical, food, pharmaceutical, construction and other industries, such as mining ore screening, chemical liquid filtration.”
- Installation method:
Q “How to install the screen?”
A “Installation needs to be based on the use of the scene and equipment to choose the appropriate method. For example, if used in vibrating screen, the screen frame should be fixed first, and then the screen mesh should be tautly fixed with special fixture.”
After-sales and service issues
- After-sales service:
Q “How can I get help if I have problems in using it?”
A “You can contact our customer service team at any time, provide product information and problem description, we will provide timely solutions.”
