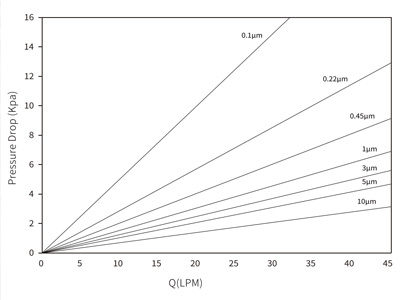

Flow Rate
CONTACT
Tel/Fax: +86-18737377191
Phone: +86-373-3765418
E-mail: service@gfscreening.com
Address: No.1, Jingyi Road, Youfang Dixiang, Guandi Township, High-tech Zone, Xinxiang City, Henan Province
KPP Pleated Filter Cartridges
- Commodity name： KPP Pleated Filter Cartridges
- Description
- KPP Series
Economical Depth Filtration Cartridges-Ultra-low pressure drop design minimizesenergyconsumption
-Exceptional dirt holding capacity extends service intervals-Broad chemical compatibility (pH 1-14) with all industrialfluids
-Cost-effective solution for air pre-filtration and waterpretreatment
-Zero chemical leaching certified to NSF/ANSl 6l standards-Reinforced polypropylene construction maintains structural integrity in demanding environments (-40°C to 90°C)
- Material of Constructions
Media
Support Layer
Cage/Core/End cap
Seal Material Options
PP
PP
PP
Silicone, EPDM, NBR FKM, E-FKM
- Industry Applications
Filter media complies with FDA/CE requirements.
Cartridges manufactured in a Class 100,000 Cleanroom environment.
Strict adherence to lS0 9001 Quality Management System.
- Applications
Foods and beverages
Wastewaters
RO pre-filtration
Fine chemicals
Process waters
Plating solutions
Technical Specifications
Microscopic Diagram

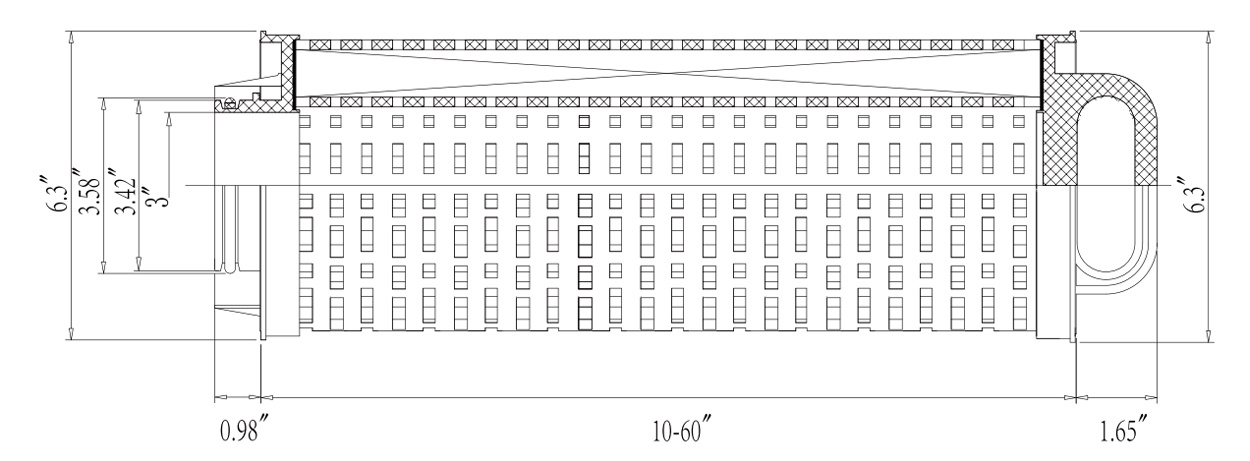

Dimensions
Ordering Information
Outer Diameter | end cap | Core | Surface | Length | Filtration | Seal material |
| 60 | A=Dual Silicone Gaskets | 1=Split | 1=Split | 10” | lum-100um | 0=silicone |
| 65 | B=222 End Cap | 2=Integrated | 2=Integrated | 20” | Customized | F=Viton |
| 68 | C=226 End Cap | 3-Sleeve Net | 3=Sleeve Net | customized | h=EPDM | |
| 83 | D=Triangle tip | 4=Tapered Steel Mesh | 4=Tapered Steel Mesh | T=PTFT | ||
| 100 | E=Figure-8 Fin | 5=stainless steel | 5=stainless steel | |||
| customized | 0=customized | 0=customized |
