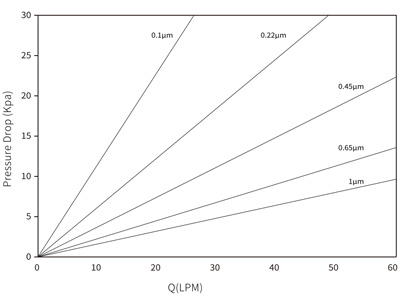

Flow Rate
CONTACT
Tel/Fax: +86-18737377191
Phone: +86-373-3765418
E-mail: service@gfscreening.com
Address: No.1, Jingyi Road, Youfang Dixiang, Guandi Township, High-tech Zone, Xinxiang City, Henan Province
KPES Pleated Filter Cartridges
- Commodity name： KPES Pleated Filter Cartridges
- Description
- KPES Polyethersulfone Series
Pharmaceutical-Grade Membrane Filters
-Engineered hydrophilicity (contact angle <50°)
enables high flux rates-Uniform pore structure (±0.lum tolerance) ensures
precise particle retention
-Exceptionalthermal/chemical resistance:
·Temperature range: -40'C to 130°C
·pH stability: 1-14 (continuous)
-Ultra-low protein binding(<5 μg/cm’lgG) minimizes
product loss
-Validated for terminal sterilization of biopharma.ceuticals
- Molecular Advantages
Cross-linked polymer matrix provides:
High flow-to-binding ratio
Minimal biomolecule adsorption
Consistent LRV >7 for 0.2um bacteria
- Critical Applications
Aseptic filling
Cell culture harvest
Vaccine purification
Diagnostic reagent sterilization
Technical Specifications
Microscopic Diagram

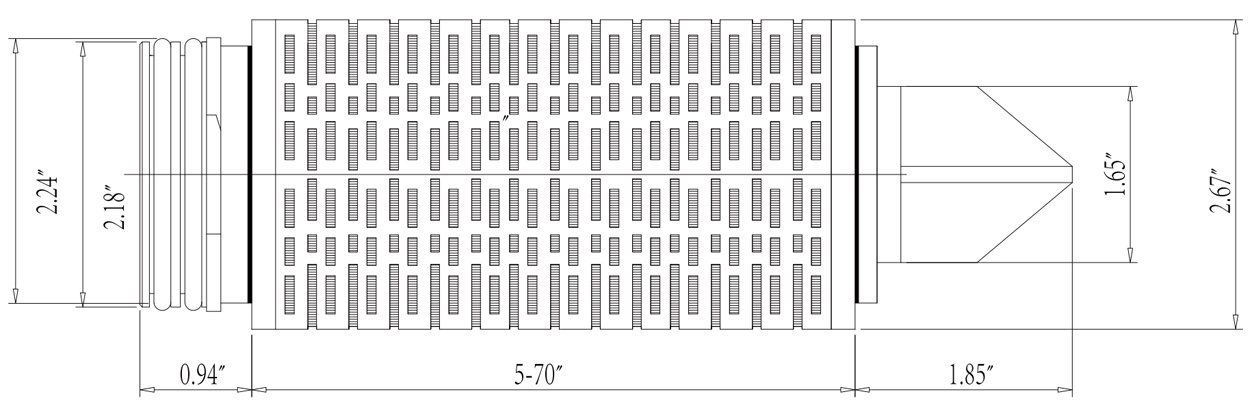

Dimensions
Ordering Information
Outer Diameter | end cap | Core | Surface | Length | Filtration | Seal material |
| 60 | A=Dual Silicone Gaskets | 1=PP | 1=Split | 10” | lum-100um | 0=silicone |
| 65 | B=222 End Cap | 2=stainless steel | 2=Integrated | 20” | Customized | F=Viton |
| 68 | C=226 End Cap | 0=customized | 3=Sleeve Net | customized | h=EPDM | |
| 83 | D=Triangle tip | 4=Tapered Steel Mesh | T=PTFT | |||
| 100 | E=Figure-8 Fin | 0=customized | ||||
| customized |
