Product Introduction
Dust filter bag, as the core component of bag filter, is like the "heart" of the entire dust removal system. It plays a key role in industrial production and environmental governance, and is of great significance for effectively purifying the air and controlling dust pollution.

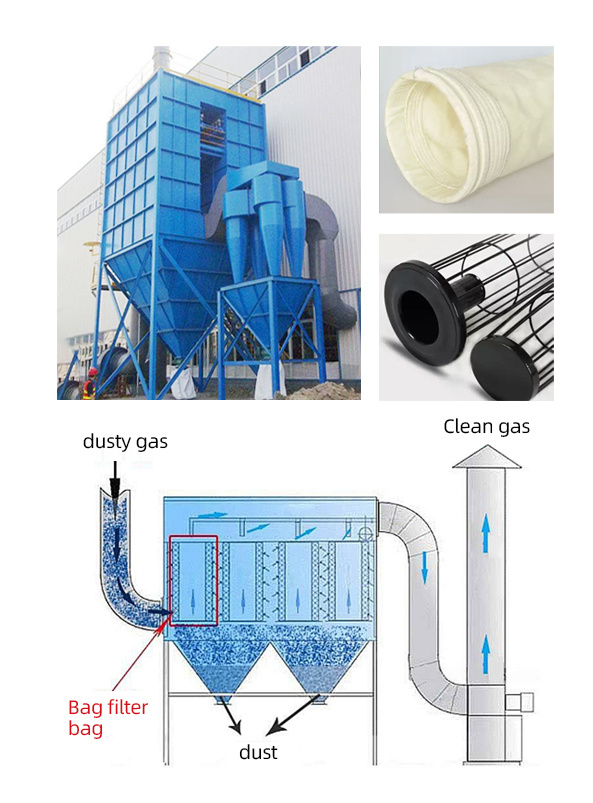

After entering the dust collector, the dusty gas first passes through the ash hopper guide plate, and some large particles of dust fall directly into the ash hopper under the action of inertial force. Subsequently, the dusty gas enters the filtering area of the filter bag, and the dust is captured by the outer surface of the filter bag. The clean gas then passes through the filter material and enters the interior of the filter bag, enters the upper box through the filter bag opening, and is discharged from the air outlet. As the filtration progresses, a "dust initial layer" will form on the surface of the filter bag, further improving the filtration efficiency.
Our dust removal filter bags are strictly produced in accordance with the national standard GB/T6719-2009, ensuring that each filter bag has superior quality and stable performance.
Product Features
It can accurately intercept fine dust, with a filtration efficiency of over 99% for particles larger than 0.1 μ m. Some high-performance filter bags have a dust removal efficiency of up to 98.99% -99.99%, which can effectively remove PM2.5 level ultrafine dust and ensure clean exhaust gas.
Ensure smooth passage of gas, reduce equipment operating resistance, minimize energy consumption, and guarantee smooth system operation.
Selected high-quality fiber materials, processed by special techniques, have a long service life, with some products reaching 2-4 years, which is 4-6 times that of traditional filter bags, reducing replacement frequency and lowering maintenance costs.
Multiple material filter bags can be provided to adapt to different working conditions. Some materials can withstand temperatures ranging from -20 ℃ to 280 ℃, and have corrosion resistance properties such as acid, alkali, and oxidation, making them capable of handling complex industrial environments with ease.
Product parameters

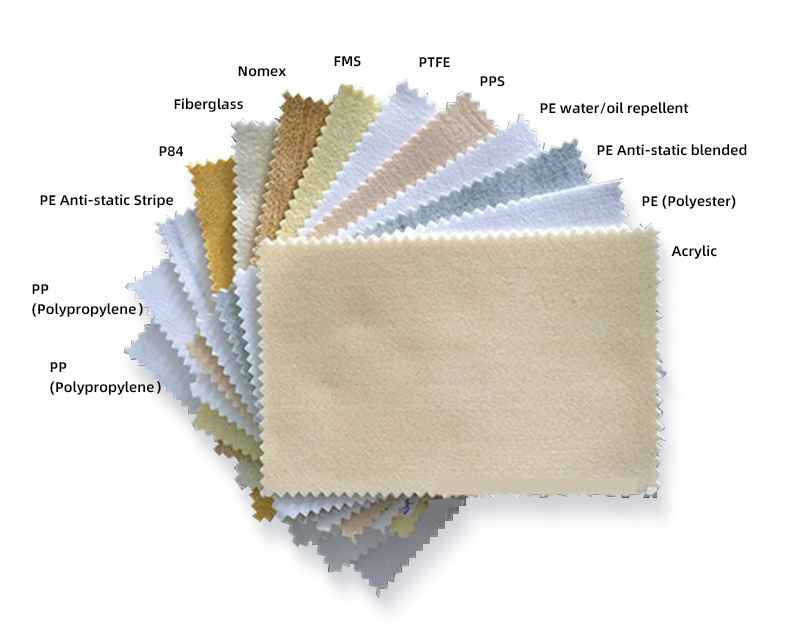

Material classificationRoom temperature type (≤ 130 ℃): mainly made of fibers such as polyester and polypropylene, economical and practical, with stable filtration performance, suitable for low-temperature and low corrosion scenarios such as grain processing, machinery manufacturing, woodworking workshops, etc.
Medium temperature type (130-180 ℃): such as acrylic filter bags, with moderate acid and alkali resistance, commonly used in working environments such as cement mills and dryers.
High temperature type (180-280 ℃): including PPS (resistant to 190 ℃), aramid (resistant to 204 ℃), PTFE (resistant to 260 ℃) and other material filter bags, it performs excellently in high temperature and high corrosion environments such as steel, garbage incineration, and coal-fired boilers.

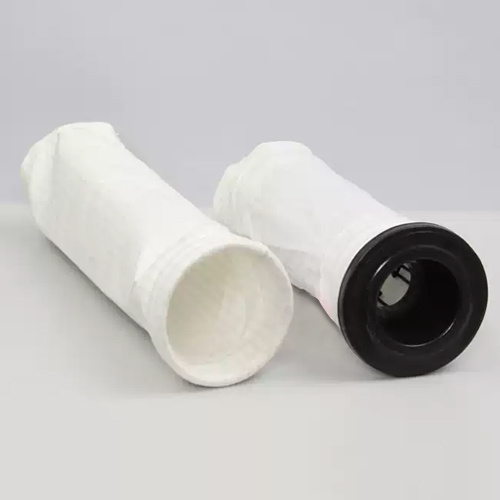

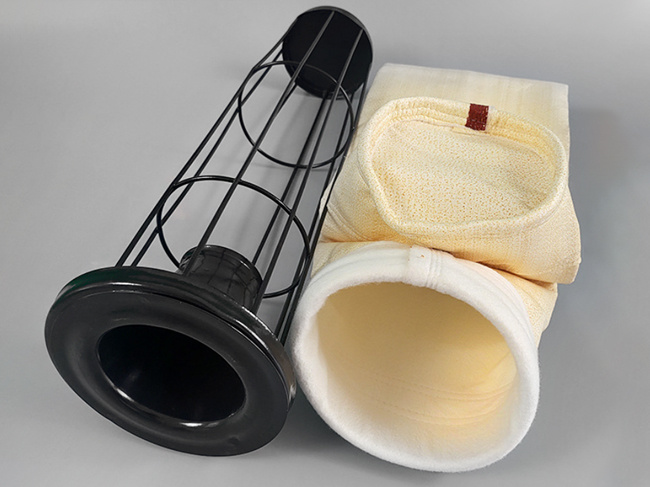

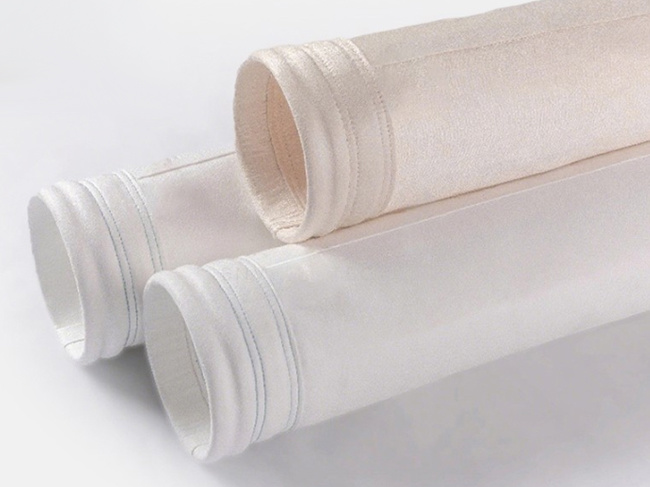

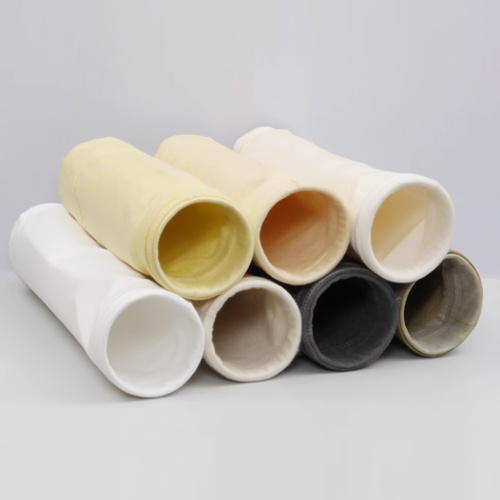

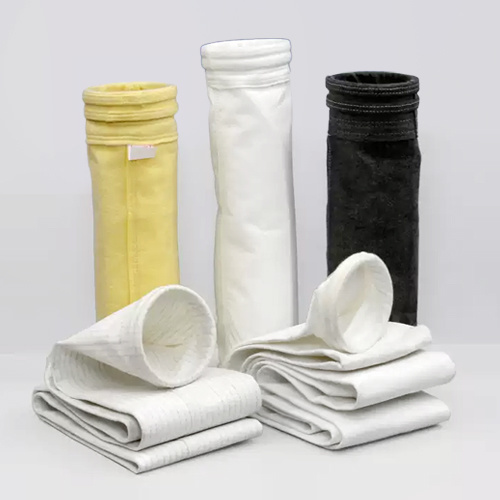

Product Photograph

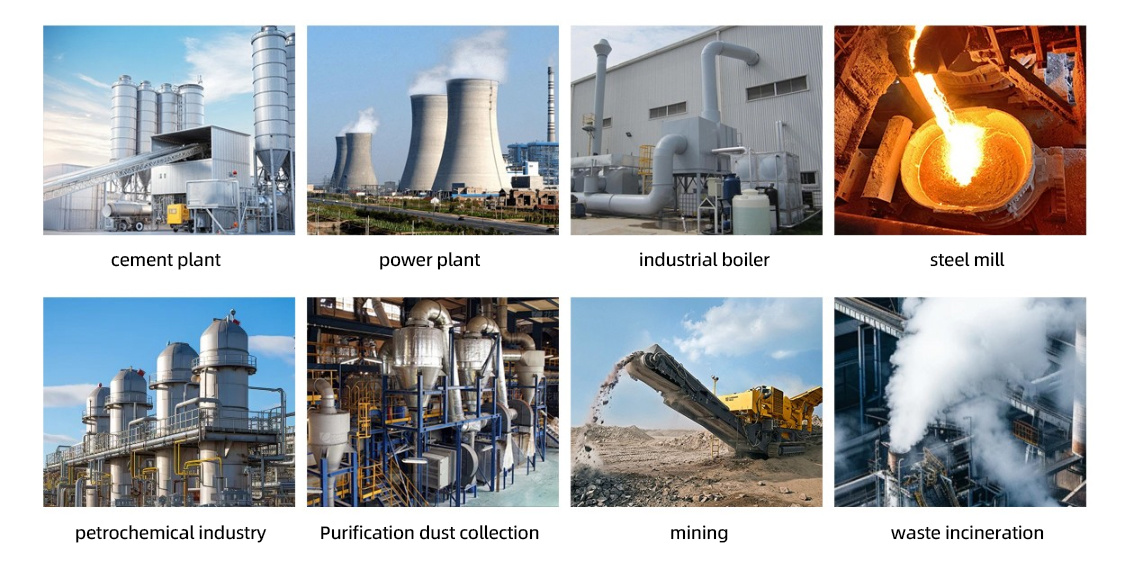

Application area
High temperature industries: Ironmaking plants, steel mills, garbage incinerators, etc., use PPS, PTFE and other high-temperature and corrosion-resistant filter bags, which can withstand the impact of high-temperature flue gas, efficiently filter dust, and meet environmental protection requirements.
High humidity and high viscosity industries: cement plants, food processing plants, etc. Oil repellent and waterproof filter bags can cope with damp and high viscosity dust, ensuring stable operation of the dust removal system and avoiding filter bag blockage.

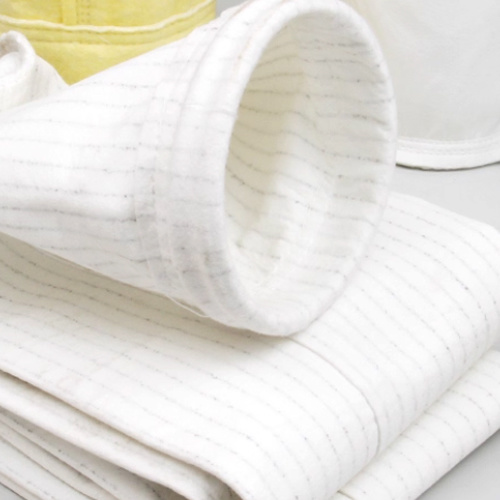

Flammable and explosive industries: flour mills, coal mines, chemical industries, etc. Anti static filter bags provide safety production protection and prevent serious losses caused by dust explosions.
Other industries: It is also widely used in dust control and purification collection in refractory factories, foundries, power plants, asphalt concrete mixing, building materials, cement ceramics, lime, gypsum production, aluminum electrolysis, non-ferrous metal smelting, pharmaceuticals, plastics, mining, grain processing, electronics, wood processing and other industries, helping various industries achieve clean production.
