Industrial dust removal filter cartridges can filter out dust in compressed air, with high dust filtration efficiency, simple installation, and convenient use and maintenance. Made of imported composite long fiber spunbond polyester non-woven fabric from the United States. It has the advantages of high filtration accuracy, good waterproof and oil resistant performance, low resistance, large processing air volume, good stiffness, not easy to deform, zero water washing, and long service life.
Using high-quality wood pulp fiber filter paper, high-strength polyester fiber non-woven fabric and other filter materials suitable for the needs of various industrial dust removal systems.Application: Industrial dust removal for painting equipment, cleaning of central air conditioning ducts, powder spraying, sandblasting operations, pigment industry, filtration for wood processing, etc. The accuracy can reach 0.3 microns! Filtration efficiency 99.9%! Imported long fiber polyester filter material, with fibers interlaced and evenly distributed. Good durability, better able to withstand pulse blowback of airflow than traditional filter media, good stiffness of filter media, and can be repeatedly cleaned. The end cap and central frame are both electroplated zinc parts, which do not rust,
Product Parameters
Model | D Ceiling Diameter | H Height | Top cover outer diameter | L Total height | S Filter Area |
|---|---|---|---|---|---|
GFPU-120 | Ф120 | 1500 | Ф130 | 1500 | 2.0 |
GFPU-130 | Ф130 | 1500 | Ф140 | 1500 | 2.5 |
GFPU-133 | Ф133 | 1500 | Ф145 | 1500 | 2.8 |
GFPU-150 | Ф150 | 1500 | Ф163 | 1500 | 3.3 |
GFPU-159 | Ф159 | 1500 | Ф168 | 1500 | 3.5 |
GFPU-162 | Ф162 | 1500 | Ф168 | 1500 | 3.6 |

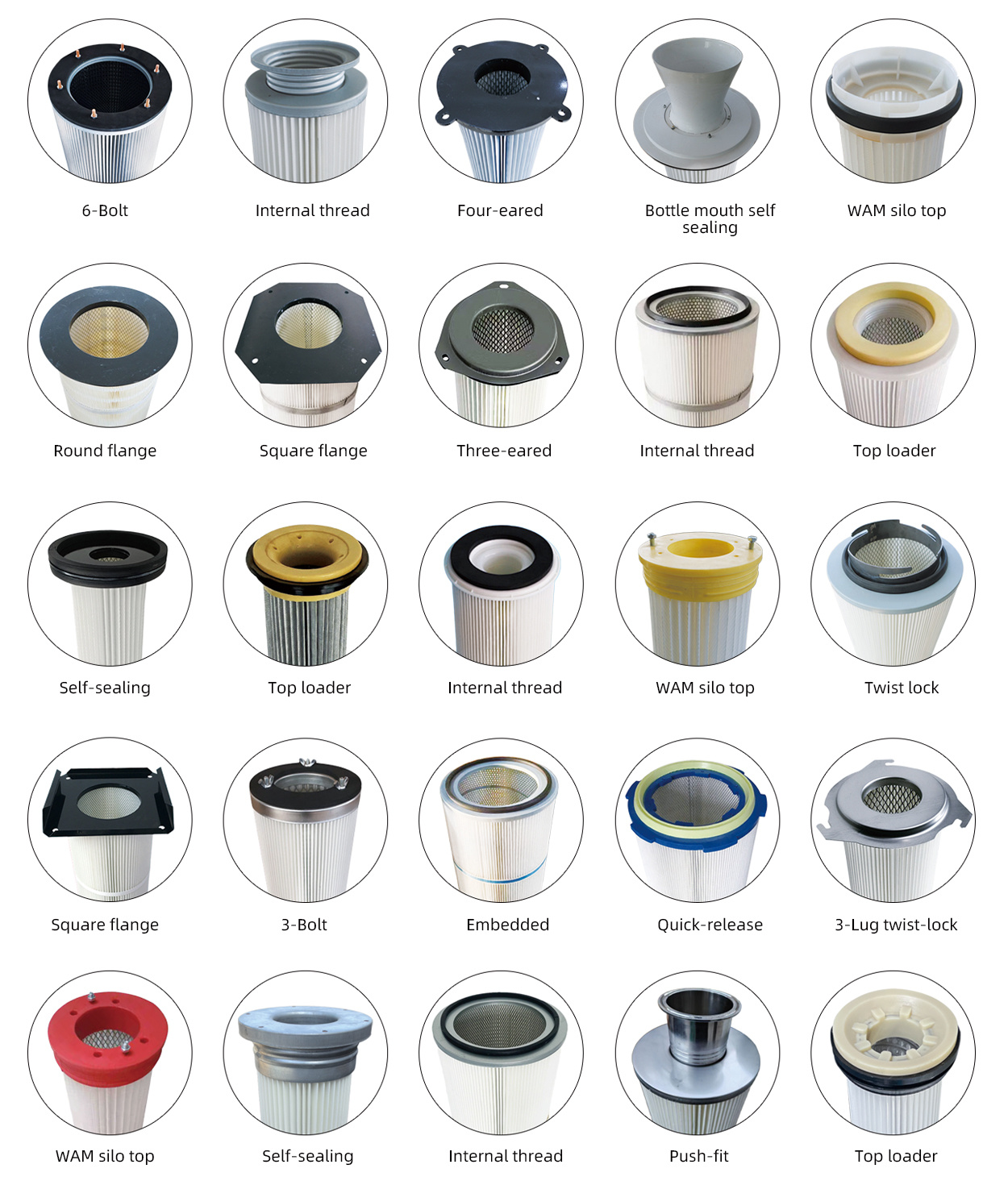

Multiple connections
More styles can be customized
High quality filter material

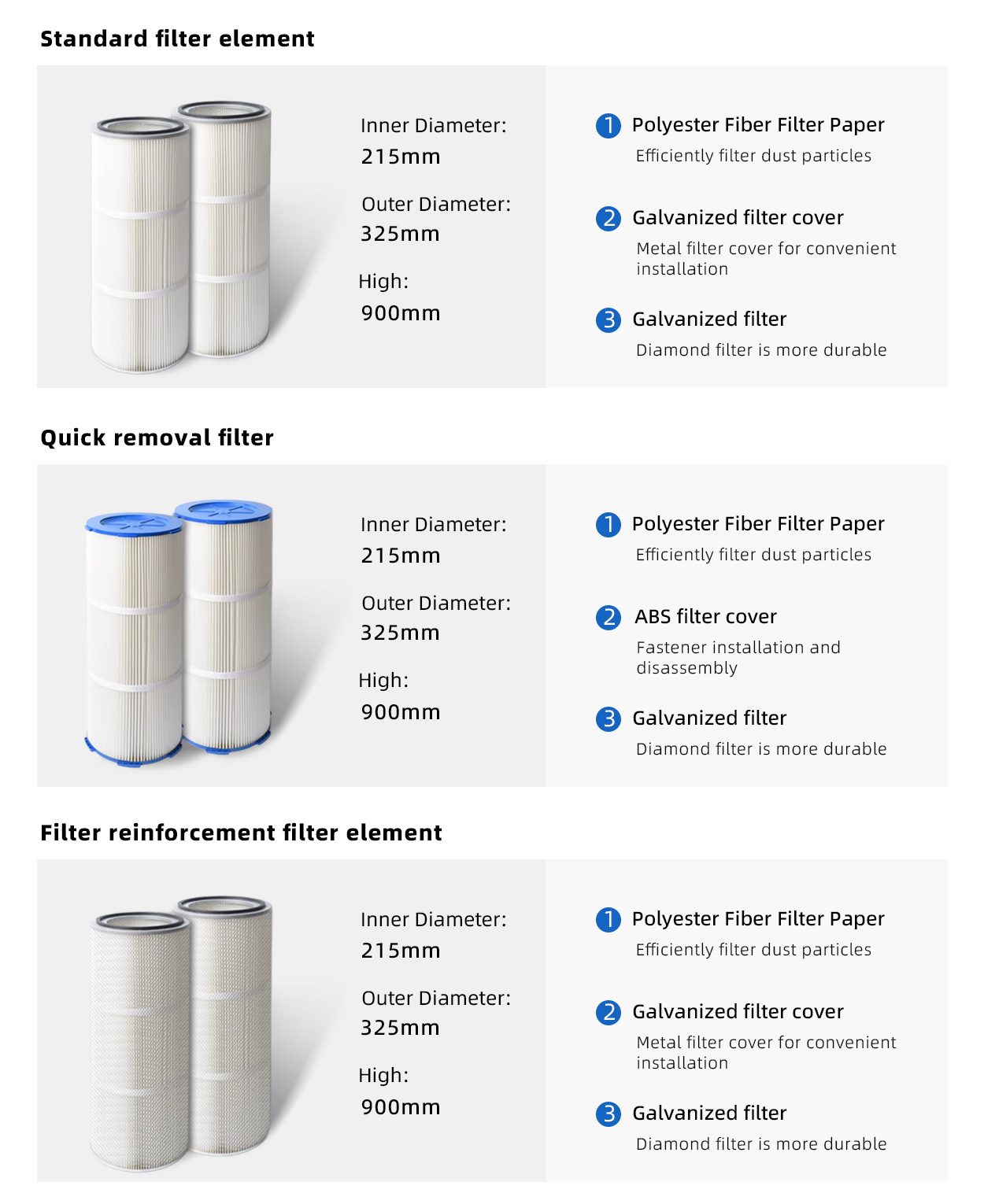

Product Details

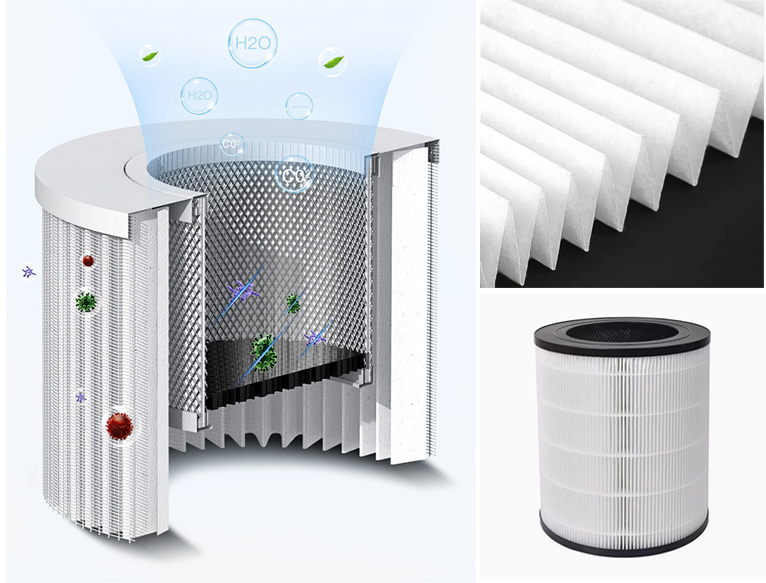

Adopting Benan polymer filter element adhesive, with good adhesion, before the adhesion after special polishing treatment to make the adhesion area increased, after the adhesion shock resistant, no cover, no powder leakage

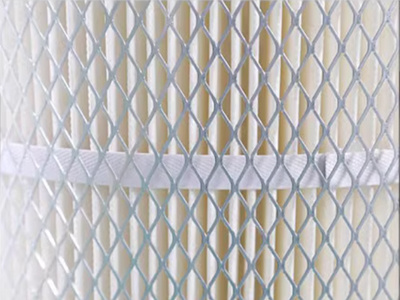

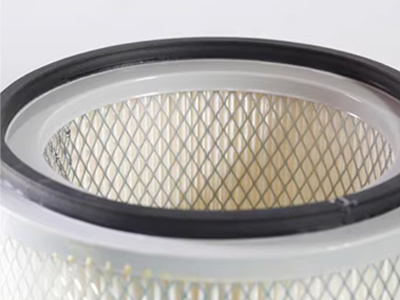

Galvanized diamond mesh, spiral mesh, punched mesh, stainless steel mesh, various skeletons optional standard 0.8mm thickness, not easy to deform, long service life

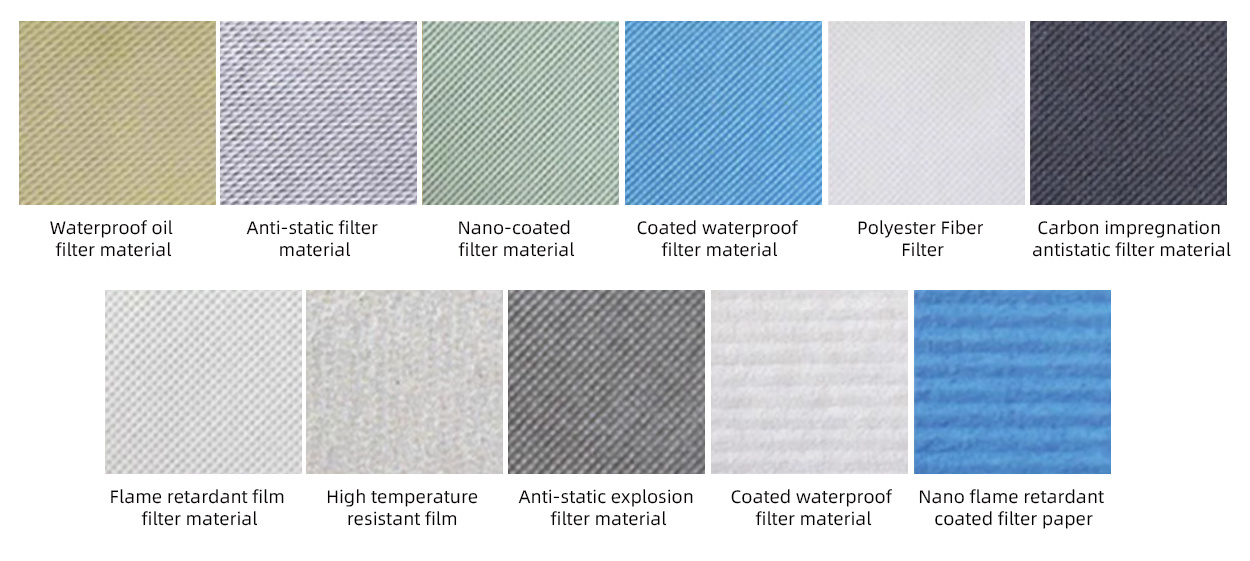

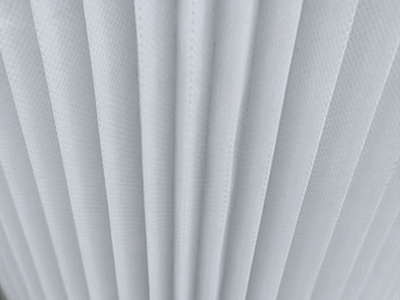

Filter material weight 180-260/m2 filtration 0.3-10um, optional multiple filter material to meet the needs of various working conditions, uniform discount process, so that the filter layer gap is small, providing a larger filter area
Product Photos
Application Industry
Metal processing industry: used for metal dust filtration produced by equipment such as sandblasting machines and blasting machines.

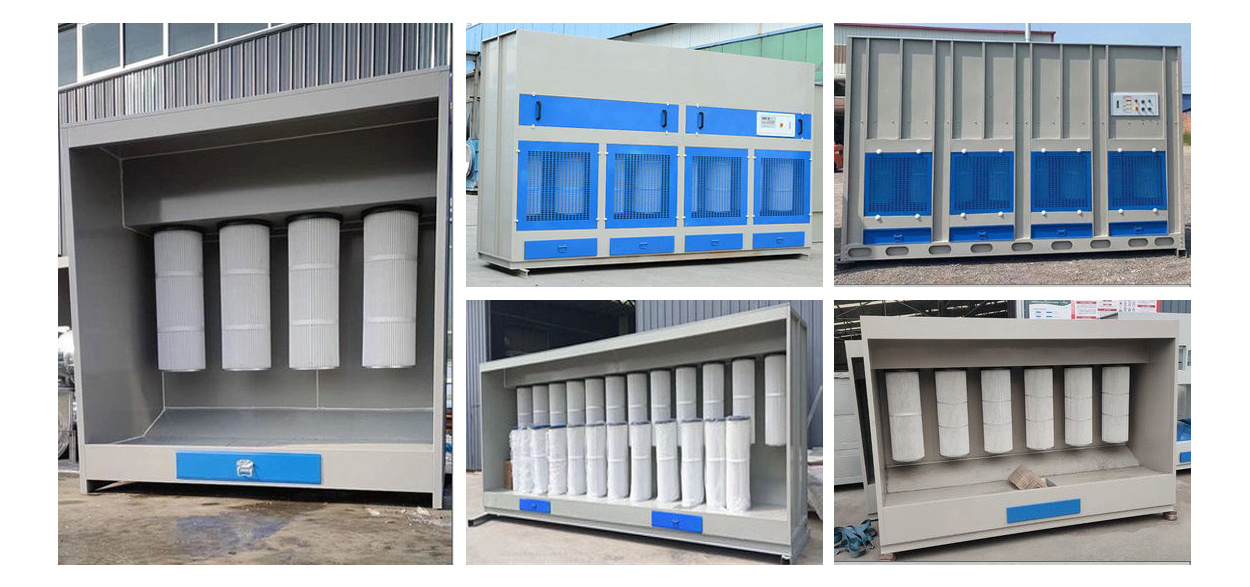

Coating industry: can filter spray paint, spray paint mist and dust.
Woodworking industry: can filter wood chip dust.
Chemical, pharmaceutical industry: can collect and filter raw material dust, pharmaceutical powder, etc.
Other industries: also widely used in cement, tobacco, textile, electronics, food and beverage industries, used to treat various types of dust, smoke and other pollutants.
Cooperative Partner
Multi layer inspection
Cooperative Partner
Keywords:
Get A Quote
We will contact you within one working day. Please pay attention to your email.
Related Products
FAQ
Product related questions
- Material:
Q “What kind of material is used in your stainless steel screen mesh?”
A “Our screen mesh is mainly made of high quality stainless steel, such as 304, 316L, which is rust-proof, corrosion-resistant, and can be adapted to different working environments.”
- Size:
Q “What are the specifications of screen mesh? Can it be customized?”
A “We have a variety of standard specifications, such as mesh size from 10 mesh to 500 mesh, width 0.5 meters to 2 meters, etc. We can also customize special specifications according to your needs. We can also customize special specifications according to your needs.”
- Product performance:
Q “What is the filtration precision of stainless steel screen mesh?”
A “The filtration precision depends on the mesh number, the higher the mesh number, the higher the precision. For example, 100 mesh screen can filter out particles larger than about 0.15mm.”
Production and processing issues
- Production cycle:
Q “How long will it take to ship after ordering?”
A “Conventional products will be shipped within 15-20 working days after receiving the payment, and customized products will take 20-30 working days, depending on the order quantity.”
- Processing technology:
Q “How are the screens produced?”
A “We adopt advanced weaving or welding technology, through drawing, weaving, cutting, welding, surface treatment and other processes to ensure product quality.”
Application and installation issues
- Application:
Q “What industries are stainless steel screen mesh applicable to?”
A “Widely used in mining, chemical, food, pharmaceutical, construction and other industries, such as mining ore screening, chemical liquid filtration.”
- Installation method:
Q “How to install the screen?”
A “Installation needs to be based on the use of the scene and equipment to choose the appropriate method. For example, if used in vibrating screen, the screen frame should be fixed first, and then the screen mesh should be tautly fixed with special fixture.”
After-sales and service issues
- After-sales service:
Q “How can I get help if I have problems in using it?”
A “You can contact our customer service team at any time, provide product information and problem description, we will provide timely solutions.”
